nanoSSD 3ME3 128G DENSD-A28D08BCAQC
nanoSSD 3ME3 128G DENSD-A28D08BCAQC
产品价格:(人民币)
  • 规格:DENSD-A28D08BCAQC
  • 发货地:中国
  • 品牌:
  • 最小起订量:1片
  • 免费会员
    会员级别:试用会员
    认证类型:企业认证
    企业证件:通过认证

    商铺名称:北京齐昂电子科技有限公司

    联系人:苗经理(先生)

    联系手机:

    固定电话:

    企业邮箱:546288802@qq.com

    联系地址:北京昌平区西三旗建材城东路新龙大厦B座1022室

    邮编:100089

    联系我时,请说是在牵牛钢材网上看到的,谢谢!

    商品详情

      nanoSSD


      nanoSSD为一整合性、符合JEDEC MO-276 SATA 装置规范的产品,配备使用单一BGA封装技术的单芯片存储器。支持SATA III 接口,可达到高速、低功耗表现。



      产品特色

      ·???????? Compliant with JEDEC MO-276 Specification

      ·???????? SATA III 6Gbps

      ·???????? Supports NCQ

      ·???????? Intelligent Flash management & real time garbage collection

      ·???????? Supports S.M.A.R.T, and iSMART utility

      ·???????? Zero mechanical interference

      Overview:

      Innodisk nanoSSD is an integrated SATA storage device; it offers high performance, light weight, low power consumption and cost efficiency in a JEDEC MO-276(μSSD) standard form factor. The nanoSSD combines with SATA III Flash controller, making it a great solution for a wide range embedded system, thin PC, automotive device, medical equipment and most industrial applications.

      Innodisk NanoSD是一款集成SATA存储设备;它采用JEDEC MO-276(μSSD)标准外形,具有高性能、轻重量、低功耗和成本效益。NANOSDSATA III闪存控制器相结合,使其成为广泛嵌入式系统、瘦PC、汽车设备 和大多数工业应用的解决方案。

      nanoSSD also comes with industrial level firmware design for extreme environments as well as the possibility for customized firmware to enhance the fitness in different applications.

      nanosd还提供了针对极端环境的工业级固件设计,以及定制固件的可能性,以增强不同应用中的适用性。

      规格:

      Model Name

      nanoSSD 3ME3

      Interface

      SATA III 6.0 Gb/s

      Flash Type

      MLC

      Type

      Standard

      Capacity

      16GB~128GB

      Sequential R/W (MB/sec, max.)

      410/140

      Max. Power Consumption

      2.3W

      Max. Channels

      4

      Power rail

      +3.3V, +1.8V, +1.2V ±10%

      ATA Security

      Y

      S.M.A.R.T.

      Y

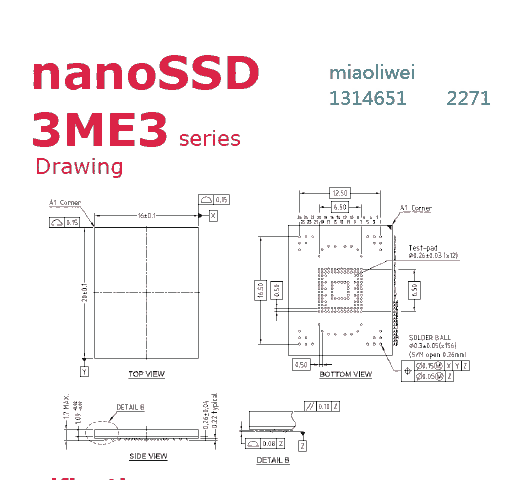

      Dimension (WxLxH/mm)

      16.0 x 20.0 x 1.7

      Shock

      1500G@0.5ms

      MTBF

      >3 million hours

      Storage Temperature

      -55°C ~ +95°C

      Operation Temperature

      Standard Grade: 0°C ~ +70°C;
      Industrial Grade: -40°C ~ +85°C

      产品料号:

      Operation Temp.

      16GB

      32GB

      64GB

      128GB

      Standard Grade
      (0°C ~ +70°C)

      DENSD-16GD08BCASC

      DENSD-32GD08BCADC

      DENSD-64GD08BCAQC

      DENSD-A28D08BCAQC

      Industrial Grade
      (-40°C ~ +85°C)

      DENSD-16GD08BWASC

      DENSD-32GD08BWADC

      DENSD-64GD08BWAQC

      DENSD-A28D08BWAQC
