商品详情
- Small Outline Dual In-line Memory Module
- Single Error Correction and Detection Available
- Fully Tested and Optimized for Stability and Performance
- Uses Original IC to Meet Strict Industrial Standards
- Anti-Sulfuration Protection Against Harsh Environments
- JEDEC Standard 1.2V (1.26V~1.14V)
- Operating Environment: -40°C ~ 125°C

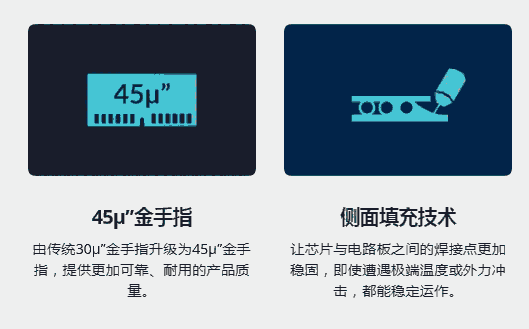

- 45μ” Gold Finger
- RoHS Compliance
- CE/FCC Certification
- Drop Test ISTA-1A (International Safe Transit Association)
- Gold Finger Insert & Extract 100 times
- Thermal Shock (MIL-STD-810G)
宽温系列
强固型工規級的DIMM系列，是专为极高、极低、或是忽冷忽热的严峻温差环境所设计。我们的内存模块皆通过JEDEC标准，并可在 -40°C~85°C 温度下运作。

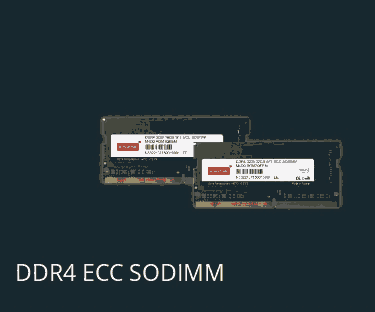

Overview:
DDR4 Ultra-temperature SODIMM offers a compact design and the industry's fastest memory speed with 3200MT/s - the perfect fit for any in-vehicle, surveillance, automation and embedded application. The modules comply with all relevant JEDEC standards, can operate in temperatures from -40?C to 125?C, and are available in 16GB and 32GB capacities. 2133MT/s, 2400MT/s 2666MT/s and 2933MT/s modules are also available.
ECC modules are designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend original data.
规格：
Interface?：DDR4
bbbb Factor?Ultra Temperature ECC SODIMM
Data Rate?：2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Capacity?：16GB, 32GB
Function?：ECC Unbuffered Memory
Pin Number?：260pin
bbbbb?：72Bits
Voltage?：1.2V
PCB Height?：1.18 Inches
Operating Temperature?：-40°C to 125°C
45μ” Gold Finger?：Y
Density?Component
Composition?Part Number?Rank?Voltage?Description
16GB?1GX8?M4D0-AGM1QEEM?2Rx8?1.2V?DDR4 3200 Ultra Temperature ECC SODIMM
32GB?2GX8?M4D0-BGM2QEEM?2Rx8?1.2V?DDR4 3200 Ultra Temperature ECC SODIMM
强固型工規級的DIMM系列，是专为极高、极低、或是忽冷忽热的严峻温差环境所设计。我们的内存模块皆通过JEDEC标准，并可在 -40°C~85°C 温度下运作。
Overview:
DDR4 Ultra-temperature SODIMM offers a compact design and the industry's fastest memory speed with 3200MT/s - the perfect fit for any in-vehicle, surveillance, automation and embedded application. The modules comply with all relevant JEDEC standards, can operate in temperatures from -40?C to 125?C, and are available in 16GB and 32GB capacities. 2133MT/s, 2400MT/s 2666MT/s and 2933MT/s modules are also available.
ECC modules are designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend original data.
规格：
Interface?：DDR4
bbbb Factor?Ultra Temperature ECC SODIMM
Data Rate?：2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Capacity?：16GB, 32GB
Function?：ECC Unbuffered Memory
Pin Number?：260pin
bbbbb?：72Bits
Voltage?：1.2V
PCB Height?：1.18 Inches
Operating Temperature?：-40°C to 125°C
45μ” Gold Finger?：Y
Anti-Sulfuration?：Y
Density?Component
Composition?Part Number?Rank?Voltage?Description
16GB?1GX8?M4D0-AGM1QEEM?2Rx8?1.2V?DDR4 3200 Ultra Temperature ECC SODIMM
32GB?2GX8?M4D0-BGM2QEEM?2Rx8?1.2V?DDR4 3200 Ultra Temperature ECC SODIMM
